Hydrotechnik overview of hose

DN2and DN4 Hose

Hydrotechnik in china
Hydrotechnik DN2 and DN4 hose data download

Working reliability of a system and lifetime of the hydrotechnik hose assembly are dependent on thecorrect installation. For this, here are some important notes:

Under load, the length of a hydrotechnik hose pipe can change. A shortening causes an additional tensile stress of the hydrotechnik hose and the connections. Therefore, the hydrotechnik hose pipe needs “slack” in an unpressurised state. Please tighten the union nuts only so far using recommended tightening torques.Further tightening does not improve the operation, but can damage the connections.

With curved assemblies, attention has to be paid to the bending radius. Sharp bends have to be avoided wherever possible. When calculating the length of a hydrotechnik hose assembly, you have to pay attention to the fact that the connection fittings are not flexible. The correct calculation of the free hydrotechnik hose length between the fittings is therefore essential.

90° hose fittings are also available to aid in the fitting of hydrotechnik hose assemblies to maximize life and operation of the assembly.

90° hose fittings can also aid in the fitting of a tidy hose assembly in the tightest of porting requirements.

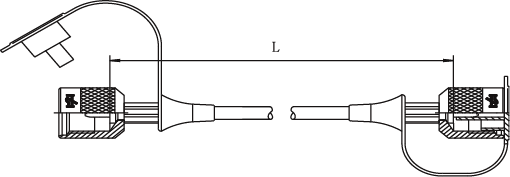

Hydrotechnik hose with MINIMESS hose DN2 1620/1620:

L(mm) P max Part-number P max Hydrotechnik Part-number
200 40MPa S100-AC-AC-0020 63MPa S110-AC-AC-0020
300 S100-AC-AC-0030 S110-AC-AC-0030
400 S100-AC-AC-0040 S110-AC-AC-0040
500 S100-AC-AC-0050 S110-AC-AC-0050
630 S100-AC-AC-0063 S110-AC-AC-0063
800 S100-AC-AC-0080 S110-AC-AC-0080
1000 S100-AC-AC-0100 S110-AC-AC-0100
1250 S100-AC-AC-0125 S110-AC-AC-0125
1500 S100-AC-AC-0150 S110-AC-AC-0150
2000 S100-AC-AC-0200 S110-AC-AC-0200
2500 S100-AC-AC-0250 S110-AC-AC-0250
3200 S100-AC-AC-0320 S110-AC-AC-0320
4000 S100-AC-AC-0400 S110-AC-AC-0400
5000 S100-AC-AC-0500 S110-AC-AC-0500

Hydrotechnik hose with MINIMESS hose DN2 1620/1620-90°:

L(mm) P max Part-number P max Hydrotechnik part-number
200 40MPa S100-AC-AL-0020 63MPa S110-AC-AL-0020
300 S100-AC-AL-0030 S110-AC-AL-0030
400 S100-AC-AL-0040 S110-AC-AL-0040
500 S100-AC-AL-0050 S110-AC-AL-0050
630 S100-AC-AL-0063 S110-AC-AL-0063
800 S100-AC-AL-0080 S110-AC-AL-0080
1000 S100-AC-AL-0100 S110-AC-AL-0100
1250 S100-AC-AL-0125 S110-AC-AL-0125
1500 S100-AC-AL-0150 S110-AC-AL-0150
2000 S100-AC-AL-0200 S110-AC-AL-0200
2500 S100-AC-AL-0250 S110-AC-AL-0250
3200 S100-AC-AL-0320 S110-AC-AL-0320
4000 S100-AC-AL-0400 S110-AC-AL-0400
5000 S100-AC-AL-0500 S110-AC-AL-0500

Hydrotechnik hose with MINIMESS hose DN2 1620/Pressure gauge connection G¼:

L(mm) P max Part-number P max Hydrotechnik Part-number
400 40MPa S100-AC-FA-0040 63MPa S110-AC-FA-0040
500 S100-AC-FA-0050 S110-AC-FA-0050
630 S100-AC-FA-0063 S110-AC-FA-0063
800 S100-AC-FA-0080 S110-AC-FA-0080
1000 S100-AC-FA-0100 S110-AC-FA-0100
1250 S100-AC-FA-0125 S110-AC-FA-0125
1500 S100-AC-FA-0150 S110-AC-FA-0150
2000 S100-AC-FA-0200 S110-AC-FA-0200
2500 S100-AC-FA-0250 S110-AC-FA-0250
3200 S100-AC-FA-0320 S110-AC-FA-0320
4000 S100-AC-FA-0400 S110-AC-FA-0400
Hydrotechnik hose with MINIMESS hose DN2 1620/Pressure gauge connection G½:
L(mm) P max Part-number P max Hydrotechnik Part-number
400 40MPa S100-AC-FB-0040 63MPa S110-AC-FB-0040
500 S100-AC-FB-0050 S110-AC-FB-0050
630 S100-AC-FB-0063 S110-AC-FB-0063
800 S100-AC-FB-0080 S110-AC-FB-0080
1000 S100-AC-FB-0100 S110-AC-FB-0100
1250 S100-AC-FB-0125 S110-AC-FB-0125
1500 S100-AC-FB-0150 S110-AC-FB-0150
2000 S100-AC-FB-0200 S110-AC-FB-0200
2500 S100-AC-FB-0250 S110-AC-FB-0250
3200 S100-AC-FB-0320 S110-AC-FB-0320
4000 S100-AC-FB-0400 S110-AC-FB-0400
Hydrotechnik hose with MINIMESS hose DN2 1620/Pressure gauge connection G¼-90°:
L(mm) P max Part-number P max Hydrotechnik Part-number
400 40MPa S100-AC-FC-0040 63MPa S110-AC-FC-0040
500 S100-AC-FC-0050 S110-AC-FC-0050
630 S100-AC-FC-0063 S110-AC-FC-0063
800 S100-AC-FC-0080 S110-AC-FC-0080
1000 S100-AC-FC-0100 S110-AC-FC-0100
1250 S100-AC-FC-0125 S110-AC-FC-0125
1500 S100-AC-FC-0150 S110-AC-FC-0150
2000 S100-AC-FC-0200 S110-AC-FC-0200
2500 S100-AC-FC-0250 S110-AC-FC-0250
3200 S100-AC-FC-0320 S110-AC-FC-0320
4000 S100-AC-FC-0400 S110-AC-FC-0400
