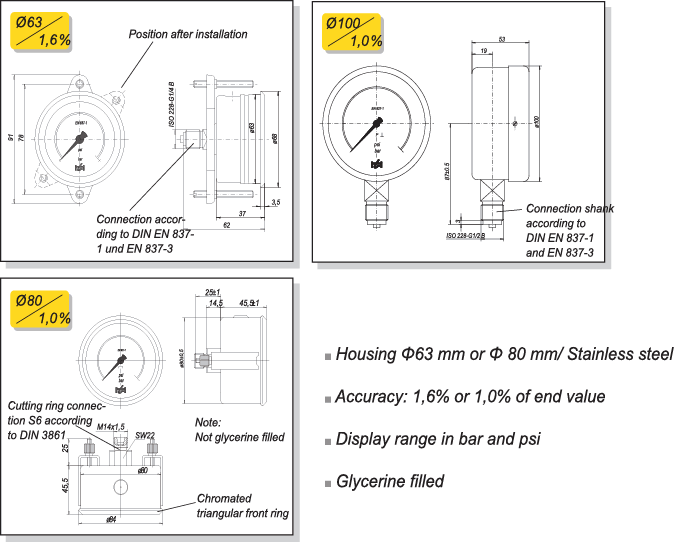

Hydrotechnik overview of analogue pressure gauges

Analogue pressure gauges
Hydrotechnik in china
Hydrotechnik analogue pressure gauges data download

Hydrotechnik order number of analogue pressure gauges φ63

Display range Hydrotechnik Part-number
0–10 bar (0–145 psi) 9801-53-00.10
0–16 bar (0–230 psi) 9801-53-00.16
0–25 bar (0–360 psi) 9801-53-00.25
0–40 bar (0–580 psi) 9801-53-00.40
0–60 bar (0–870 psi) 9801-53-00.60
0–100 bar (0–1450 psi) 9801-53-01.00
0–160 bar (0–2300 psi) 9801-53-01.60
0–250 bar (0–3600 psi) 9801-53-02.50
0–400 bar (0–5800 psi) 9801-53-04.00
0–600 bar (0–8700 psi) 9801-53-06.00

Hydrotechnik order number of analogue pressure gauges φ80

Display range Hydrotechnik Part-number
0–10 bar (0–145 psi) 9801-35-00.10
0–16 bar (0–230 psi) 9801-35-00.16
0–25 bar (0–360 psi) 9801-35-00.25
0–40 bar (0–580 psi) 9801-35-00.40
0–60 bar (0–870 psi) 9801-35-00.60
0–100 bar (0–1450 psi) 9801-35-01.00
0–160 bar (0–2300 psi) on request
0–250 bar (0–3600 psi) 9801-35-02.50
0–400 bar (0–5800 psi) 9801-35-04.00
0–600 bar (0–8700 psi) 9801-35-06.00
Hydrotechnik order number of analogue pressure gauges φ100
Display range Hydrotechnik Part-number
0–10 bar (0–145 psi) on request
0–16 bar (0–230 psi) on request
0–25 bar (0–360 psi) 9801-20-00.25
0–40 bar (0–580 psi) on request
0–60 bar (0–870 psi) 9801-20-00.60
0–100 bar (0–1450 psi) 9801-20-01.00
0–160 bar (0–2300 psi) 9801-20-01.60
0–250 bar (0–3600 psi) on request
0–400 bar (0–5800 psi) 9801-20-04.00
0–600 bar (0–8700 psi) 9801-20-06.00
